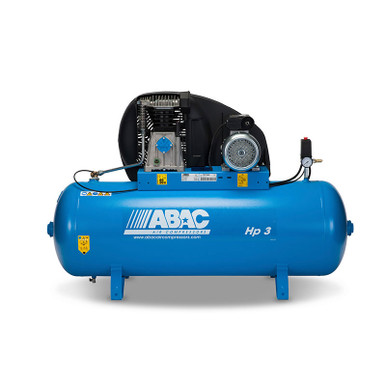

ABAC Pro A39 B FM3 200 Litre Air Compressor
Key features
ABAC Pro A39B FM3 200 Litre Air Compressor
These ABAC pro single stage piston compressors provide great performance and durability alongside optimal usability. All these compressors are manufactured with the best belt guards available which help proved optimal air flow over the pump. The pump on this air compressor is running at low speed and comes equipped with aftercoolers to reduce operating temperatures even more than ever before. This air compressor comes with equipped with a 200 Litre tank and delivers an air displacement of 14 cfm making it the perfect air compressor specifically for the operation of our tyre changing machines. This air compressor is the perfect work horse for any garage looking to operate tyre changers, car ramps with air locking systems, air tools and much more.
Features and Benefits:-
- Ergonomically designed belt guards providing optimal cooling.
- Cast Iron cylinder blocks fitted as standard.
- Aftercoolers fitted as standard for reduced operating temperatures.
- Low operating speed for increased longevity
- Twin pressure regulators fitted as standard for multi simultaneous tool operation (portable models only)
- Additional safety thanks to the lockable swivel wheels (portable models only)
- Ergonomic handle with rubber grip for increased user comfort
- Motor overload switches fitted standard for increased protection (230v models only)
- User-friendly Clear oil level indicators
- Large and easy to operate drain valve.
| Item number | 4116025016 |
|---|---|
| Product Name | PRO A39B 200 FM3 UK |
| Oil Free | No |
| Air Displacement (cfm) | 13.8 |
| Free Air Delivery (cfm) | 10.1 |
| Air hose attachment (inch) | 1/2" |
| Suitable for | Professional |
| Horsepower (HP) | 3 |
| Power (kW) | 2,2 |
| Brand | ABAC |
| Air receiver capacity (Lt) | 200 |
| Oil volume (lt) | 0,89 |
| Starter | Direct on line, Electric |
| Revolutions per minute (RPM) | 1050 |
| Type | 1 stage, Belt driven |
| Number of cylinders | 2 |
| Weight (kg) | 91 |
| Width (mm) | 1500 |
| Mobility | Stationary |
| Depth (mm) | 470 |
| Height (mm) | 1110 |
| Voltage (V) | 230 |
| Integrated dryer | No |
| Frequency (Hz) | 50 |
| Phase | 1 |
| Maximum air pressure (bar) | 10 |
| Cooling type | Air |
| Sound level LpA at 4m distance | 73 |
| Sound level LwA | 93 |
