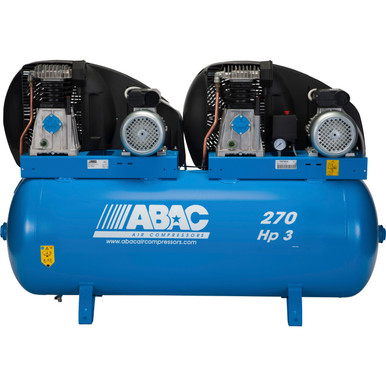

ABAC Pro A39 B Tandem FM3 Twin 3HP 270 Litre Air Compressor
Key features
PRO A39 270 FM3 TANDEM 3 + 3Hp, 270Ltr (230v)
PRO Series Single stage belt driven piston compressors
ABAC PRO professional single stage piston compressors combine high user comfort with great durability and efficient performance. All the units are equipped with the best belt guard available, providing an optimal air flow over the pump. The pumps are running at low speed and all come with aftercoolers to reduce operating temperatures even more than ever before.
All machines have the maximum number of feet with rubber bumpers or lockable pivot wheels, providing the safest and best stability possible. The range offers different power sizes and tank capacities while all models are built with the highest care for detail and quality.
The tandem ranges allows users to have a modular solution by starting one or both pumps. This gives you more flexibility in case of a fluctuating demand, or it can be seen as a back up solution when maintenance is required on either one of the two pumps.
Features and Benefits :-
- Ergonomically designed belt guards providing optimal cooling
- Cast Iron cylinder blocks fitted as standard
- Aftercoolers fitted as standard for reduced operating temperatures
- Low operating speed for increased longevity
- Twin pressure regulators fitted as standard for multi simultaneous tool operation (portable models only)
- Additional safety thanks to the lockable swivel wheels (portable models only)
- Ergonomic handle with rubber grip for increased user comfort
- Motor overload switches fitted standard for increased protection (230v models only)
- User-friendly Clear oil level indicators
- Large and easy to operate drain valve
- Double pump for maximum compressed air output from a 230v supply (32amp)
- Control box fitted as standard for selecting desired pump / pumps to run
| Item number | 4116024868 |
|---|---|
| Product Name | PRO A39 270 FM3 TANDEM . |
| Oil Free | No |
| Air Displacement (cfm) | 27.6 |
| Free Air Delivery (cfm) | 20.2 |
| Air hose attachment (inch) | 1/2" |
| Suitable for | Professional |
| Horsepower (HP) | 3+3 |
| Power (kW) | 2.2 + 2.2 |
| Brand | ABAC |
| Air receiver capacity (Lt) | 270 |
| Oil volume (lt) | 1,89 |
| Starter | Direct on line, Electric |
| Revolutions per minute (RPM) | 1050 |
| Type | 1 stage, Belt driven |
| Number of cylinders | 4 |
| Weight (kg) | 153 |
| Width (mm) | 1570 |
| Mobility | Stationary |
| Depth (mm) | 470 |
| Height (mm) | 100 |
| Voltage (V) | 230 |
| Integrated dryer | No |
| Frequency (Hz) | 50 |
| Phase | 1 |
| Maximum air pressure (bar) | 10 |
| Cooling type | Air |
| Sound level LpA at 4m distance | 73 |
| Sound level LwA | 93 |
