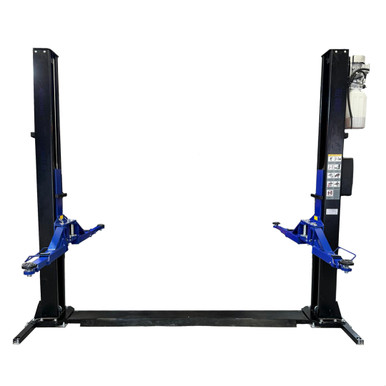

UT40EFB Full Based 2 Post Car Lift

U-T40EFB Automatic 2 post car lift Now With 3-Stage Arms

This Eurotek U-T40EFB post car lift is designed with a H-Frame floor mount plate made from high tensile steel for the purpose of added strength and stability when lifting a car on your 2-post vehicle lift. Often installations will be refused because you do not have the required depth or strength of concrete required to hold a 2-post car lift and vehicle to the floor. So, for that reason the UT40EFB 2 post lift has the H-frame to support the inward pull force of the 2 posts and vehicle. This 4 ton full based 2 post ramp has been built with affordable quality in mind, unlike some of our competitors this 2 post lift has double height screw pads as standard which adjust from a low 110mm in 2 stages all the way up to 150mm which covers all variant heights of floor pans and if that's not enough we also include a set of four 60mm height pad extensions ideal for avoiding the side steps on 4x4's and a set of four 90mm extensions for lifting van's and avoiding sill damage. Although this ramp can lift some van's it is not specifically designed for long wheel-based vans. As an alternative to this 4 tonne 2 post lift we can offer a 2 post van lift with a huge 5 tonne lifting capacity and longer reach 3-stage arms specifically designed for long wheel based vans, take a look at the Eurotek UT50E 5 Tonne 2 Post Car Lift.

For added safety the Eurotek UT40EFB Full Based Lift comes complete with a fully electronic safety release system so the locks are always engaged when you are working under the lift.

Eurotek lifts are tested and certified to UKCA & CE standards bearing the recognised UKCA & CE mark and are supplied with a 12 month parts only warranty for your piece of mind.

The Eurotek UT40EFB Top Features:

• H – Frame, Concrete support base Unit
• 4-ton lifting capacity
• Twin Hydraulic Cylinders for powerful lifting
• Fan Assisted Finned Motor with 2.2 KW Power
• Available in 240V or 415V without effecting the performance.
• Lifting Speed of less than 45s
• Double height screw pads adjustable from 90 mm - 150 mm on 3-Stage Arms
• 60 mm & 90 mm screw pad extensions for added pad height.
• Automatic safety release system
• Automatic arm locking system.

UT40EFB Specifications:

• LIFTING CAPACITY - 4000KG
• MAXIMUM LIFTING HEIGHT - 1910MM
• INITIAL PAD HEIGHT - 110MM
• APROXIMATE LIFTING TIME - <45 SECONDS.
• APPROXIMATE DECENT TIME - <45 SECONDS
• POWER REQUIRMENT - 240V/415V
• OVERALL HEIGHT - 2850MM
• OVERAL WIDTH - 3420MM
• INTERNAL WIDTH - 2616MM
• MOTOR POWER - 2.2KW
• WHOLE MACHINE WEIGHT - 616KG
