MaxiSYS DS900EU BT Servicing Tool
Key features

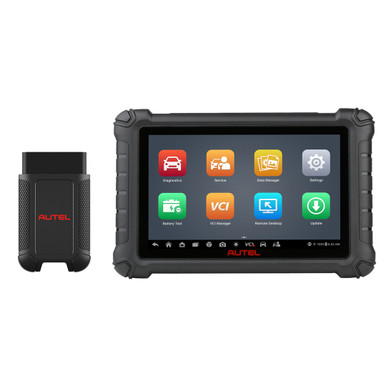

MaxiDas DS900EU BT
This Autel diagnostic tool is the DS900EU BT and comes loaded with an impressive array of features. It comes equipped with support for over 70 manufacturers, and facilitates actuation testing, special functions, live data analysis, and ensuring compatibility with both DoIP and CAN-FD protocols. This diagnostics tool is capable of reading and clearing codes, Supports Pre & Post Scan function, resetting service mileage and service intervals, Relearning parking brake pad after replacement, forced regeneration and adjusting injectors, support battery registration and reset, Resetting Steering Angle Sensor (SAS)
The DS900EU BT EU vehicle scanner comes equipped with a spacious 8-inch high-resolution screen, Wi-Fi capability, an 8-megapixel camera, 4GB of RAM, DoIP and CAN-FD compliance, and features a 'best in class 64GB Internal Hard Drive.
Self-powered and designed to connect to the vehicle via a Bluetooth VCI, the DS900EU BT proves to be the indispensable tool for bustling garages and workshops seeking the latest in technology and unbeatable value.
Additionally, the DS900EU BT package includes a complimentary 2-year subscription for software updates, along with UK-based telephone support and enhanced European software. Please be aware that access to DoIP and CAN-FD systems necessitates an up-to-date software subscription.
Top Features:
- 8-inch LCD capacitive touchscreen with 1280 x 800 resolution display
- MaxiVCI V150 for wireless connection
- Read/clear codes for all available systems.
- Display live data in text, graph & analogue for easy data review.
- Features DoIP and CAN FD protocols
- AutoVIN technology can automatically identify the vehicle’s make, model and year information in no time.
- Support Pre & Post Scan function
- Reset service mileage and service intervals.
- Relearn parking brake pad after replacement.
- Forced regeneration and adjusting injectors.
- Support battery registration and reset.
- Reset Steering Angle Sensor (SAS)
Specifications:
- Operating System: Android 11
- Processor: Quad core Processor(1.8GHz)
- Memory: 4GB RAM & 64GB ROM
- Display: 8-inch LCD capacitive touchscreen with 1280x800 resolution
- Rear Camera: 8 MP
- Connectivity: USB Type-C, USB 2.0, Wi-Fi, Bluetooth, Mini SD card (supports up to 64GB)
- Audio Input/Output: Input: N/A
- Output: buzzer
- Power and Battery: 3.7 V/7700mAh lithium-polymer battery, Charges via 5 VDC power supply
- Battery Charging Input: 5 V/3 A
- Operating Temp: 0 to 50°C (32 to 122°F)
- Storage Temp: -10 to 60°C (14 to 140°F)
- Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD
- An up-to-date software subscription is required to access DoIP and CAN-FD systems.
- DoIP and CAN-FD Compliant
- Secure Gateway approved by Vehicle Manufacturers
