L200R 4 Tonne 2 Post Lift With Base Frame
Delivered on a pallet — it needs offloading. Do you have a forklift on site?

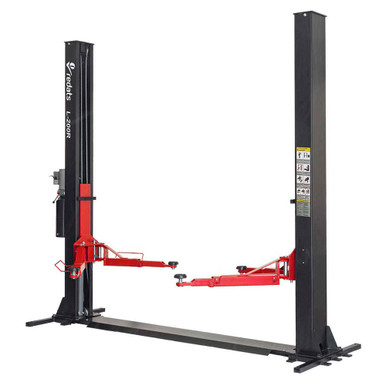

This is our REDATS L-200R manual lock 2 post lift, if you are looking for a 2-post lift that will work hard and lift vehicles up to 4 ton without breaking your bank then this is the perfect ramp for you. This lift still has a lifting capacity of 4000KG and has a versatile manual release safety locking system. It comes equipped with an automatic arm locking system and single height screw pads as standard. This ramp is supplied with a reinforced steel base frame to spread the weight of the load across the concrete for safer lifting on floors that are not up to spec.
Lift with reinforcing frame - differences
The lift with the reinforcing frame is a bit wider than the standard one. The frame makes it wider by 160 mm - 80 mm per side. Keep in mind the frame has a special support part. It is 120 cm wide.
Multiple Delivery options available please contact us for more details
Specifications
Lowering Speed 25 Seconds
Lifting Speed 55 Seconds
Max Car Width 2500mm
Motor Power 2.2KW
Lifting Height 90mm - 1930mm
Power Source 240V/ 1 Phase or 415V/3 Phase
